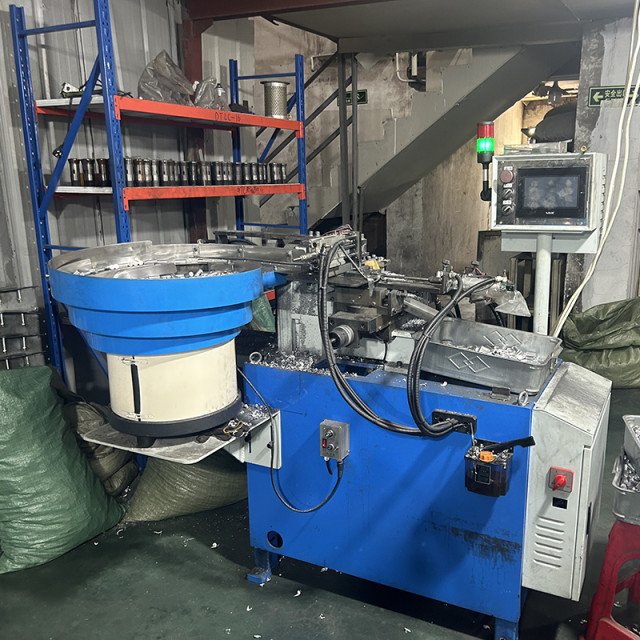

Automatic Instrument for Copper & Aluminum Terminal Surface Trimming: High-Precision Tool for Terminal Finishing
Our automatic instrument specifically designed for copper and aluminum terminal surface trimming is an advanced, specialized device engineered to deliver precise, consistent, and efficient finishing for copper and aluminum terminals. Tailored to address the unique material properties of copper (high ductility) and aluminum (soft texture), it integrates intelligent sensing, automated trimming control, and material-specific processing technologies—making it an essential tool for terminal manufacturing, electrical component production, and wiring harness industries across global markets.
Core Advantages & Performance Highlights
- Material-Specific Precision Trimming: Optimized for copper and aluminum terminals, achieving trimming accuracy of ±0.02mm. The specialized trimming head (equipped with tungsten carbide blades) ensures smooth, burr-free edges without damaging the terminal surface—critical for maintaining electrical conductivity and connection reliability of copper/aluminum terminals.
- Automated & Efficient Processing: Features automatic terminal feeding (via servo-driven conveyor belts with position sensors), auto-detection of terminal size (supports 2mm–50mm terminal width), and auto-adjustment of trimming parameters. Achieves 30–80 trims per minute, reducing labor costs by 70–90% compared to manual trimming and ensuring uniform quality across batches.
- Intelligent Control & Data Monitoring: Equipped with an 8–10 inch touchscreen HMI (supporting 25+ languages) and PLC control system. Allows storage of up to 500 sets of trimming parameters (customizable for different terminal types: ring terminals, spade terminals, pin terminals). Enables real-time monitoring of trimming count, defect rate, and blade wear, with data exportable via USB or synchronized to MES/ERP systems.
- Durable & Material-Protective Design: Constructed with a corrosion-resistant aluminum alloy frame (suitable for copper/aluminum dust) and sealed trimming chamber (prevents metal shavings from contaminating components). The soft-clamping mechanism secures terminals without causing deformation—critical for preserving the structural integrity of soft aluminum terminals and ductile copper terminals.
- Safety & Energy Efficiency: Complies with global safety standards, featuring safety light curtains (Type 4), dual-channel emergency stops, and blade guard interlocks. Adopts an energy-saving servo motor (0.5kW–2.2kW) with variable speed control, cutting energy consumption by 30–40% compared to generic trimming instruments. The automatic blade sharpening function extends blade life by 50%, reducing maintenance frequency.
Product Specifications
- Trimming Capabilities:
- Applicable Materials: Copper (T2, TU1, TP2), Aluminum (1050, 1060, 6061)
- Terminal Size Range: Width 2mm–50mm, Thickness 0.3mm–5mm
- Trimming Accuracy: ±0.02mm
- Trimming Speed: 30–80 trims/min (varies by terminal size)
- Edge Finish: Ra ≤ 0.8μm (burr-free, no scratch)
- Control & Sensing:
- Control System: PLC (Mitsubishi FX3U/Siemens S7-1200) + touchscreen HMI
- Sensing Technology: Laser size detection (for terminal positioning) + pressure sensors (for clamping force control)
- Safety Standards: CE, ISO 12100, ANSI B11.21, GB/T 37660-2019
- Power & Installation:
- Power Supply: 220V/380V, 3-phase, 50/60Hz (customizable)
- Machine Weight: 300kg–800kg (varies by model)
- Overall Dimensions (L×W×H): 1800mm×1200mm×1600mm–2500mm×1500mm×1800mm
- Shaving Collection: Built-in vacuum system (collection efficiency ≥ 98%)
Wide-Ranging Industrial Applications
Our automatic terminal surface trimming instrument is a specialized solution for terminal manufacturing and related sectors:
- Terminal Manufacturing: Trimming of copper ring terminals, aluminum spade terminals, and copper-aluminum transition terminals (ensuring smooth edges for crimping or soldering).
- Electrical Component Production: Finishing of copper pin terminals for connectors (e.g., automotive electrical connectors) and aluminum blade terminals for power distribution blocks.
- Wiring Harness Industry: Trimming of pre-crimped copper terminals for household wiring harnesses and aluminum terminals for automotive wiring harnesses (reducing connection resistance).
- Renewable Energy: Precision trimming of copper terminals for solar inverter connectors and aluminum terminals for wind turbine electrical systems (ensuring reliable current transfer).
- Automotive Electrical Systems: Trimming of copper terminals for battery cables and aluminum terminals for EV charging connectors (meeting automotive-grade quality standards).
- Electronics Manufacturing: Finishing of small copper terminals for PCB (Printed Circuit Board) connectors and aluminum terminals for LED driver wiring.
Customization & Service Support
- Tailored Solutions: Offer custom trimming configurations for special terminal shapes (e.g., L-shaped terminals, multi-contact terminals) and add-on functions (e.g., terminal marking, post-trimming cleaning). Provide integrated terminal processing lines (stamping + trimming + inspection) for large-scale production.
- Installation & Training: On-site installation, equipment commissioning, and 5–7 days of operator training (covering terminal setup, parameter adjustment, blade replacement, and maintenance). Provide detailed technical manuals and video tutorials in multiple languages.
- After-Sales Service: 24/7 global technical support (via phone, email, or remote access), spare parts delivery (within 2–5 days for standard parts like blades), and annual maintenance contracts.
- Warranty: 2-year standard warranty on main components (frame, servo system, trimming head); 1-year warranty on electrical parts. Extended warranty (up to 3 years) and blade replacement packages available.
- Compliance & Certification: All instruments pass strict quality inspections (trimming precision testing, material compatibility testing) before delivery and meet CE, ISO 9001, and industry-specific standards (e.g., IATF 16949 for automotive-related terminals).
Why Choose Our Automatic Terminal Trimming Instrument?
With over 10 years of experience in specialized terminal processing equipment, we have supplied 500+ automatic trimming instruments to customers in 32+ countries, achieving a 99% customer satisfaction rate. Our product is uniquely designed to address the challenges of copper and aluminum terminal trimming—ensuring precision, efficiency, and material protection that generic instruments cannot match. Whether you’re producing standard terminals or custom components, our instrument helps you reduce defects, boost productivity, and meet strict industry quality requirements.
Contact our sales team today to request a product demo, technical datasheet, or personalized quote!
