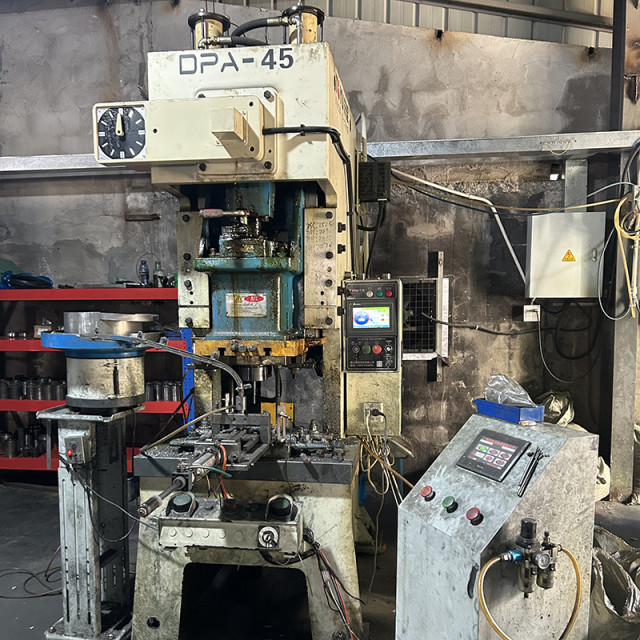

Automatic Punching Machine: Elevate Your Production with Intelligent Metal Forming
Our automatic punching machines are engineered to redefine efficiency in large-scale metal stamping, integrating advanced automation technology, high-precision control, and seamless workflow integration. Designed for high-volume manufacturing—from continuous batch production to customized mass output—these machines minimize manual intervention, boost productivity, and ensure consistent part quality, making them indispensable for industries like automotive, electronics, construction, and consumer goods across global markets.
Core Advantages & Performance Highlights
- High-Speed Automation: Delivers 300–1000 strokes per minute (SPM), 2–3 times faster than standard manual machines. Equipped with automatic feeding, positioning, and unloading systems, reducing cycle time by 40–60% for high-volume production runs.
- Precision & Consistency: Features servo-driven control systems and high-precision linear guides, ensuring tight tolerances of ±0.005mm–±0.03mm. Real-time error correction technology minimizes deviation, guaranteeing uniform part quality across thousands of units.
- Seamless Workflow Integration: Compatible with MES (Manufacturing Execution System) and ERP (Enterprise Resource Planning) software, enabling remote monitoring, production data tracking, and centralized management. Supports integration with upstream (coil uncoilers) and downstream (part sorting, packaging) equipment for end-to-end automation.
- Versatile Processing Capabilities: Handles diverse metal materials, including carbon steel (up to 8mm thickness), stainless steel (up to 6mm), aluminum (up to 10mm), copper, and brass. Performs complex operations such as multi-station stamping, deep drawing, embossing, and tapping in a single continuous process.
- Energy Efficiency & Cost Savings: Adopts variable-frequency drives (VFD) and intelligent power management, reducing energy consumption by 25–35% compared to traditional automatic machines. Low material waste (≤2% scrap rate) and minimal maintenance needs lower long-term operational costs.
- User-Friendly Smart Control: Equipped with a 12–15 inch touchscreen HMI with intuitive interface, supporting 30+ languages. Allows one-click parameter storage (up to 500 production recipes) and remote technical support via cloud connectivity, simplifying operation and troubleshooting.
Product Specifications
- Machine Types:
- Servo-Driven Automatic Punching Machines (high precision for complex parts)
- Hydraulic Automatic Punching Machines (high force for thick materials)
- Mechanical Automatic Punching Machines (high speed for thin-sheet stamping)
- Key Technical Parameters:
- Capacity (Nominal Force): 200kN–1200kN (servo: 200kN–800kN; hydraulic: 500kN–1200kN)
- Stroke Length: 30mm–150mm (adjustable via HMI)
- Maximum Workpiece Size: 800mm×1500mm–2000mm×3000mm (varies by model)
- Feeding Accuracy: ±0.01mm (servo feeding system)
- Speed Range: 300–600 SPM (mechanical); 400–800 SPM (servo); 300–500 SPM (hydraulic)
- Control System:
- PLC: Siemens S7-1200/1500 or Mitsubishi Q Series with servo control modules
- Safety Features: Safety light curtains (Type 4), dual-channel emergency stops, overload protection, and heat monitoring. Complies with CE, ISO 13849-1 (PLd/PLe), ANSI B11.12, and OSHA standards.
- Automation Components:
- Feeding System: Servo roll feeders (1–3 axes) or robotic arms (for irregular workpieces)
- Unloading System: Conveyor belts, suction cups, or robotic grippers with part sorting function
- Tooling: Quick-change die systems (setup time ≤15 minutes) with die protection sensors
Wide-Ranging Industrial Applications
Our automatic punching machines are trusted for high-volume, high-precision production in key sectors:
- Automotive Industry: Mass production of car body parts (door hinges, chassis brackets), engine components (gaskets, sensor housings), and EV battery trays.
- Electronics & Electrical: Large-scale manufacturing of circuit board frames, connector pins, terminal blocks, and transformer cores.
- Construction & Hardware: Production of building hardware (roofing clips, window frames), fasteners (anchor bolts, washers), and HVAC components.
- Consumer Goods: Stamping of appliance parts (washing machine drums, refrigerator shelves), kitchenware (cookware handles, cutlery blanks), and furniture hardware.
- Aerospace & Defense: High-precision production of small structural parts (aircraft brackets, missile components) in medium-to-large batches.
- Medical Devices: Mass manufacturing of stainless steel medical instrument parts (scalpel handles, syringe barrels) with strict quality control.
Customization & Service Support
- Tailored Automation Solutions: Design custom automatic punching lines based on workpiece size, material, and production volume. Offer optional upgrades such as vision inspection systems, laser marking, and automated packaging.
- Installation & Integration: On-site installation, system integration with existing production lines, and 1–2 weeks of operator and maintenance training. Provide detailed technical documentation and video tutorials.
- After-Sales Service: 24/7 global technical support (via phone, email, or remote access), spare parts delivery (within 2–5 days for urgent needs), and annual maintenance contracts.
- Warranty: 2-year standard warranty on main components (servo systems, hydraulic pumps, control units); 1.5-year warranty on automation parts. Extended warranty and preventive maintenance plans available.
- Compliance & Certification: All machines meet CE, ISO 9001, ISO 14001, and industry-specific standards (e.g., IATF 16949 for automotive).
Why Choose Our Automatic Punching Machine?
With over 20 years of experience in automation and metal forming technology, we have delivered 800+ automatic punching solutions to customers in 40+ countries, achieving a 98% production efficiency improvement for our clients. Our machines combine advanced automation, reliable performance, and cost-effectiveness, helping you meet the demands of high-volume production while maintaining strict quality standards.
Contact our sales team today to request a customized production line proposal, technical datasheet, or on-site demo!
