Thickness Range
|
Thickness Tolerance (±)
|
Width Range
|
Width Tolerance (±)
|
Spool Weight
|
|
0.1–0.5 mm
|
0.005–0.010 mm
|
1.0–5.0 mm
|
0.02–0.05 mm
|
5–20 kg
|
|
0.5–2.0 mm
|
0.010–0.020 mm
|
5.0–15.0 mm
|
0.05–0.10 mm
|
20–50 kg
|
|
2.0–5.0 mm
|
0.020–0.050 mm
|
15.0–30.0 mm
|
0.10–0.20 mm
|
50–100 kg
|
|
Custom thickness/width and spool specifications are available upon request.
|

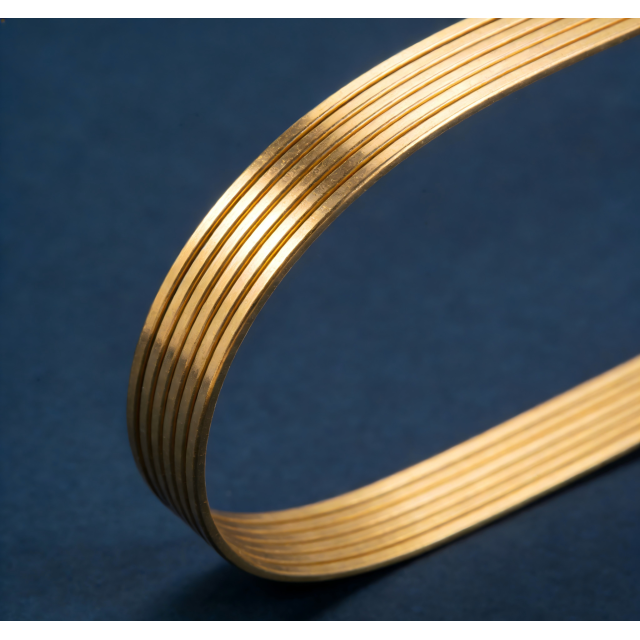

brass flat wire is a high-performance Cu-Zn alloy (e.g., H62, H65, H70) produced via precision rolling and drawing, featuring a smooth, uniform surface and consistent cross-section. It combines excellent formability, corrosion resistance, and mechanical strength, ideal for applications requiring precise dimensions and reliable performance.
Product Model: AIW
Range: 0.1x1.6 mm
Class: 220
Product Model: QZ PEW
Range: 0.05-2.50mm
Class: 130;155
Standard Compliance: GB/T 6109 IEC 60317 JIS C3202 NEM
