Friction Welding Machine: High-Efficiency, Precision Joining Solutions for Industrial Manufacturing

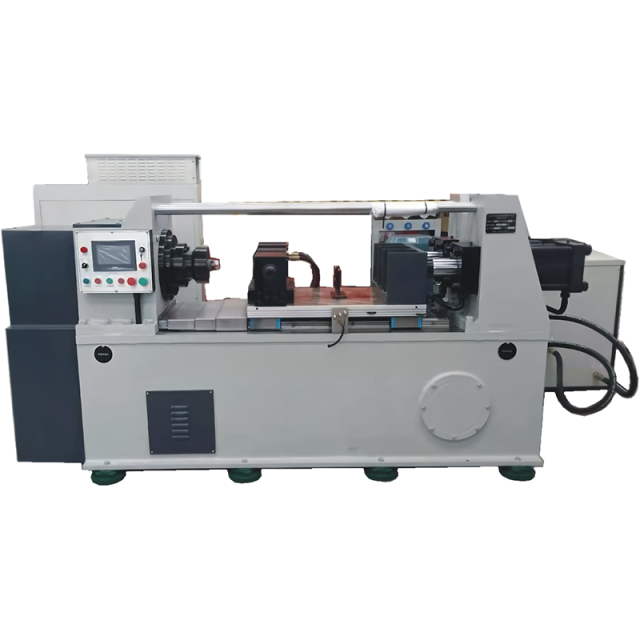

Advanced Friction Welding Machine: Redefining Industrial Joining Standards
Our friction welding machine is a cutting-edge industrial equipment designed to deliver high-strength, defect-free welds for a wide range of metal components. Leveraging innovative friction welding technology, it eliminates the need for consumables (such as electrodes or filler metals) while ensuring fast processing, low energy consumption, and consistent performance—making it an indispensable tool for automotive, aerospace, oil & gas, and heavy machinery manufacturing industries worldwide.
Core Technology & Performance Advantages
- Superior Weld Quality: Creates metallurgical bonds with exceptional tensile strength, fatigue resistance, and leak-tightness. Welded joints often match or exceed the strength of the base material, eliminating common issues like porosity, cracks, or heat-affected zone (HAZ) softening.
- High Efficiency & Cost Savings: Features rapid welding cycles (typically 10–60 seconds per joint) and no consumable waste, reducing production time and operational costs by 30–50% compared to traditional welding methods (e.g., arc welding, laser welding).
- Energy-Efficient Operation: Uses only mechanical energy to generate heat for welding, consuming 40–60% less energy than fusion welding technologies. Lowers carbon footprint and aligns with sustainable manufacturing goals.
- Versatile Material Compatibility: Effectively joins dissimilar and similar metals, including steel (carbon steel, stainless steel), aluminum, copper, titanium, nickel alloys, and magnesium. Ideal for applications requiring strong bonds between different metal types.
- Precision Control & Automation: Equipped with advanced PLC (Programmable Logic Controller) systems and touchscreen interfaces, enabling real-time monitoring of welding parameters (pressure, speed, temperature, time). Supports fully automated or semi-automated operation for consistent results across high-volume production.
- Durable & Low-Maintenance Design: Constructed with high-grade structural steel, wear-resistant components, and sealed bearings. Minimizes downtime with easy-to-access maintenance points and a average service life of 10–15 years under standard operating conditions.
Product Specifications
- Machine Types:
- Rotary Friction Welding Machine (for cylindrical components: shafts, bolts, pipes)
- Linear Friction Welding Machine (for non-cylindrical parts: blades, structural components)
- Inertia Friction Welding Machine (for high-strength joints in aerospace and defense applications)
- Welding Capacity:
- Maximum Workpiece Diameter: 10mm – 500mm (rotary type); 50mm × 50mm – 300mm × 300mm (linear type)
- Maximum Workpiece Length: Up to 3000mm (customizable for long components)
- Maximum Welding Force: 50kN – 2000kN (adjustable based on material and joint requirements)
- Spindle Speed (Rotary Type): 500rpm – 5000rpm (variable frequency control)
- Control System:
- PLC: Siemens/Schneider with HMI touchscreen (10–15 inch, multi-language support)
- Parameter Storage: Up to 1000 welding programs for quick recipe switching
- Data Logging: Real-time recording of welding data (exportable via USB/ Ethernet)
- Safety Features: Emergency stop buttons, safety light curtains, overload protection, and temperature monitoring alarms. Complies with CE, ISO 13919-1, and ANSI/AWS D10.12 standards.
- Power Supply: 380V/400V/480V, 3-phase, 50/60Hz (customizable for regional voltage requirements)
Wide-Ranging Industrial Applications
Our friction welding machines are trusted by manufacturers across key sectors for critical joining tasks:
- Automotive & Transportation: Axles, drive shafts, gear shafts, suspension components, EV battery terminals, and exhaust systems. Enables lightweighting with aluminum-steel joints.
- Aerospace & Defense: Turbine blades, engine shafts, landing gear components, and missile casings. Meets strict aerospace standards (e.g., AMS 2759) for high-reliability joints.
- Oil & Gas: Drill pipes, wellhead components, valves, and pipeline connectors. Ensures leak-proof joints for high-pressure and corrosive environments.
- Heavy Machinery: Construction equipment shafts (excavator arms, loader components), agricultural machinery parts, and power transmission shafts.
- Electrical & Electronics: Copper-aluminum busbars, transformer terminals, and motor shafts. Delivers low-resistance joints for efficient power transfer.
- Medical Devices: Surgical instrument components (stainless steel-titanium joints) and implantable parts (biocompatible welds).
Customization & Service Support
- Tailored Solutions: We design custom friction welding machines for unique workpiece sizes, materials, and production lines. Our engineering team provides feasibility studies and prototype testing.
- Installation & Training: On-site installation, commissioning, and operator training (1–2 weeks) to ensure optimal machine performance.
- After-Sales Service: Global service network with 24/7 technical support, spare parts supply (delivery within 3–7 days), and annual maintenance contracts.
- Warranty: 2-year standard warranty on machine components; extended warranty options available.
- Compliance & Certification: All machines are CE, ISO 9001, and ISO 14001 certified. Custom certifications (e.g., AS9100 for aerospace) can be provided upon request.
Why Choose Our Friction Welding Machine?
With over 20 years of experience in welding technology innovation, we combine precision engineering with customer-centric design to deliver machines that boost productivity and product quality. Our friction welding solutions have been adopted by 500+ manufacturers in 30+ countries, with a 98% customer satisfaction rate. Whether you need a standard machine for high-volume production or a custom system for complex components, we provide end-to-end support from design to after-sales.
Contact our sales team today to request a product demo, technical datasheet, or personalized quote!
