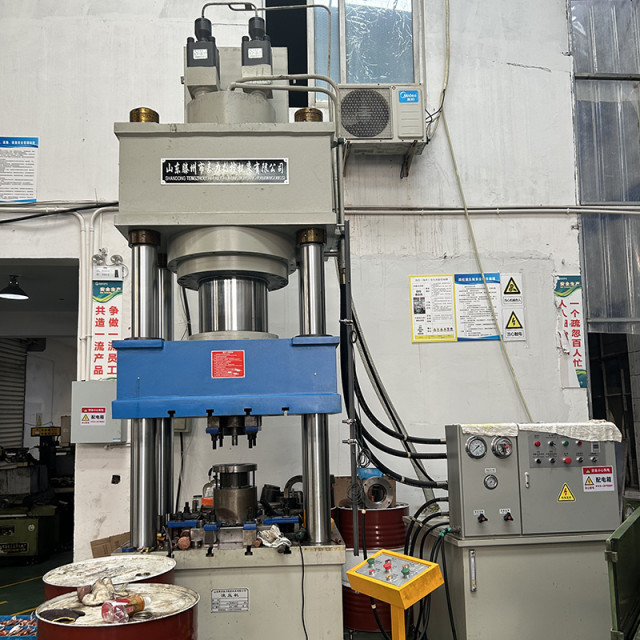

400T Hydraulic Press Machine: Heavy-Duty Power for Precision Metal Processing
400T Hydraulic Press Machine: High-Pressure Performance for Heavy-Duty Metal Forming
Our 400T hydraulic press machine is a rugged, high-performance industrial solution engineered to deliver exceptional pressure, precise control, and reliable operation for heavy-duty metal processing tasks. With a nominal force of 400 tons, it combines advanced hydraulic technology with a robust structural design, making it an ideal choice for industries like automotive manufacturing, aerospace component production, construction machinery, and metal fabrication across global markets.
Core Advantages & Performance Highlights
- Powerful Heavy-Duty Capacity: Features a 400-ton nominal pressure and 800-ton maximum instantaneous pressure, enabling efficient processing of thick and high-strength metals (carbon steel up to 80mm, stainless steel up to 60mm, alloy steel up to 70mm). Perfect for hot forging, cold extrusion, deep drawing, bending, and stamping of large or complex metal parts.
- Precision Hydraulic Control: Equipped with a servo-hydraulic system and proportional pressure/flow valves, ensuring precise pressure regulation (±1% of nominal force) and stroke control (±0.02mm). The closed-loop feedback system minimizes deviation, guaranteeing consistent part quality even in long production runs.
- Stable & Durable Structure: Constructed with a one-piece cast steel frame (heat-treated for stress relief) and high-wear-resistant cylinder liners (hard chrome-plated), reducing vibration and deformation during high-pressure operations. Offers a service life of 20–25 years under standard working conditions.
- Energy-Saving Operation: Adopts a variable-displacement hydraulic pump and intelligent power management system, cutting energy consumption by 30–40% compared to traditional fixed-displacement hydraulic presses. The idle pressure reduction function further lowers power waste during non-processing periods.
- Safety & User-Friendly Design: Complies with global safety standards, featuring safety light curtains (Type 4), dual-channel emergency stops, overload protection, and anti-fall devices for the sliding block. The 15-inch touchscreen HMI with intuitive interface supports multi-language operation and one-click parameter storage.
- Versatile Processing Capabilities: Compatible with various tooling and auxiliary equipment (e.g., heating furnaces for hot forging, robotic arms for automatic feeding/unloading). Supports custom process configurations for diverse metal forming needs, from small-batch prototypes to large-volume production.
Product Specifications
- Basic Parameters:
- Nominal Force: 4000kN (400T)
- Maximum Instantaneous Force: 8000kN (800T)
- Sliding Block Stroke: 200mm–500mm (adjustable)
- Daylight Opening: 300mm–800mm (customizable)
- Workbench Size: 1200mm×1000mm (length×width); 1500mm×1200mm (optional large-size)
- Sliding Block Speed: 50–200mm/s (fast down); 5–30mm/s (working stroke); 80–250mm/s (return)
- Hydraulic System:
- Hydraulic Pump: Variable-displacement piston pump (2×55kW)
- Oil Tank Capacity: 1200L
- Working Pressure: 25MPa (adjustable up to 31.5MPa)
- Oil Temperature Control: Built-in cooling system (water-cooled/air-cooled optional)
- Control & Safety:
- Control System: PLC (Siemens S7-1500) + servo controller
- Safety Standards: CE, ISO 13849-1 (PLe), ANSI B11.2, GB/T 3766-2021
- Safety Features: Safety interlock, pressure overload alarm, temperature monitoring, and sliding block anti-drop device
- Installation & Dimensions:
- Machine Weight: 35000kg (35 tons)
- Overall Dimensions (L×W×H): 4200mm×2500mm×5800mm
- Power Supply: 380V/400V/480V, 3-phase, 50/60Hz (customizable for regional voltage)
Wide-Ranging Industrial Applications
Our 400T hydraulic press machine is a versatile workhorse in heavy-duty metal processing sectors:
- Automotive Manufacturing: Hot forging of engine crankshafts, transmission gears, and axle housings; cold extrusion of brake calipers and suspension components; deep drawing of car body panels.
- Aerospace & Defense: Precision forming of aircraft structural parts (wing spars, landing gear components) and missile shell blanks (using high-strength titanium alloys and stainless steel).
- Construction Machinery: Forging of excavator bucket teeth, loader arm pins, and hydraulic cylinder barrels; bending and shaping of large steel structural parts for construction equipment.
- Metal Fabrication: Stamping of large-scale hardware (heavy-duty hinges, industrial fasteners), deep drawing of pressure vessels (tanks, cylinders), and bending of thick steel plates for infrastructure projects.
- Tool & Die Making: Pressing and shaping of large mold bases, die cores, and high-hardness tool steel components; heat treatment auxiliary forming of precision dies.
- Renewable Energy: Manufacturing of wind turbine components (flange plates, gearbox parts) and solar panel frame supports (aluminum alloy extrusion forming).
Customization & Service Support
- Tailored Solutions: Offer custom upgrades such as automatic feeding/unloading systems (robotic arms/conveyors), workpiece heating systems (induction heating), vision inspection modules, and MES/ERP integration for smart factory management. Customize machine dimensions, force, and stroke to match specific production needs.
- Installation & Training: On-site installation by professional engineers, equipment commissioning, and 2-week comprehensive training (covering operation, maintenance, and troubleshooting). Provide detailed technical documents and video tutorials in multiple languages.
- After-Sales Service: 24/7 global technical support (via phone, email, or remote access), spare parts delivery (within 2–5 days for urgent needs), and annual maintenance contracts.
- Warranty: 2.5-year standard warranty on main components (frame, hydraulic pump, servo system); 1.5-year warranty on electrical parts. Extended warranty (up to 5 years) and preventive maintenance plans available.
- Compliance & Certification: All machines pass strict quality inspections (load testing, precision testing) before delivery and meet CE, ISO 9001, ISO 14001, and industry-specific standards (e.g., IATF 16949 for automotive).
Why Choose Our 400T Hydraulic Press Machine?
With over 20 years of experience in hydraulic equipment manufacturing, we have supplied 500+ 400T hydraulic press machines to customers in 40+ countries, achieving a 97% customer satisfaction rate. Our machines combine heavy-duty performance, energy efficiency, and precision control—helping you tackle the most demanding metal forming tasks while reducing production costs and improving operational efficiency.
Contact our sales team today to request a product demo, technical datasheet, or personalized quote!
